A concealed medium duty hinge for unrebated, flush-faced quality timber doors. Has removeable cover plates to conceal the adjustment screws.nnAvailable Finishes: Bronze Plated, Antique Satin Bronze Plated, Nickel Plated, Matt Nickel Plated, Brass Plated, Stainless SteelPlated OR Matt BlackPlatednnFor a finish comparison, please open the datasheet linknnDimensions: 134mm Length, 24mm Width, 21mm DepthnnSuitable for doors from 30mm thicknnSuitable for doors of 40kg load (2 hinges)nnSuitable for doors of 60kg load (3 hinges)nnMaximum width up to 1000mmnnReversible on doors from 30mm to 33mm thicknnFit no more than 4.5mm from door and frame edgennFire rated FD30 timbernnSold and Supplied in SinglesnnIntumescent Fire Kit Also AvailablennCeam Hinge Installation – Click herenn

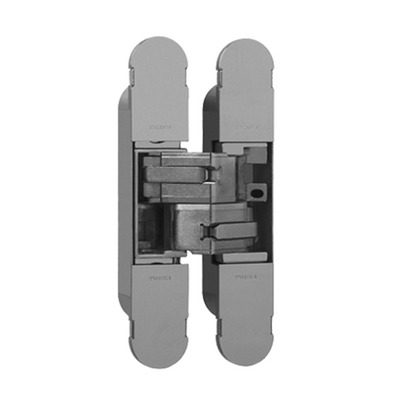

Eurospec Ceam 3D Concealed Hinge 1130 (134mm x 24mm), Various Finishes – CI001130 MATT NICKEL PLATED – 134mm x 24mm
£36.04
Visit Retailer to Order
